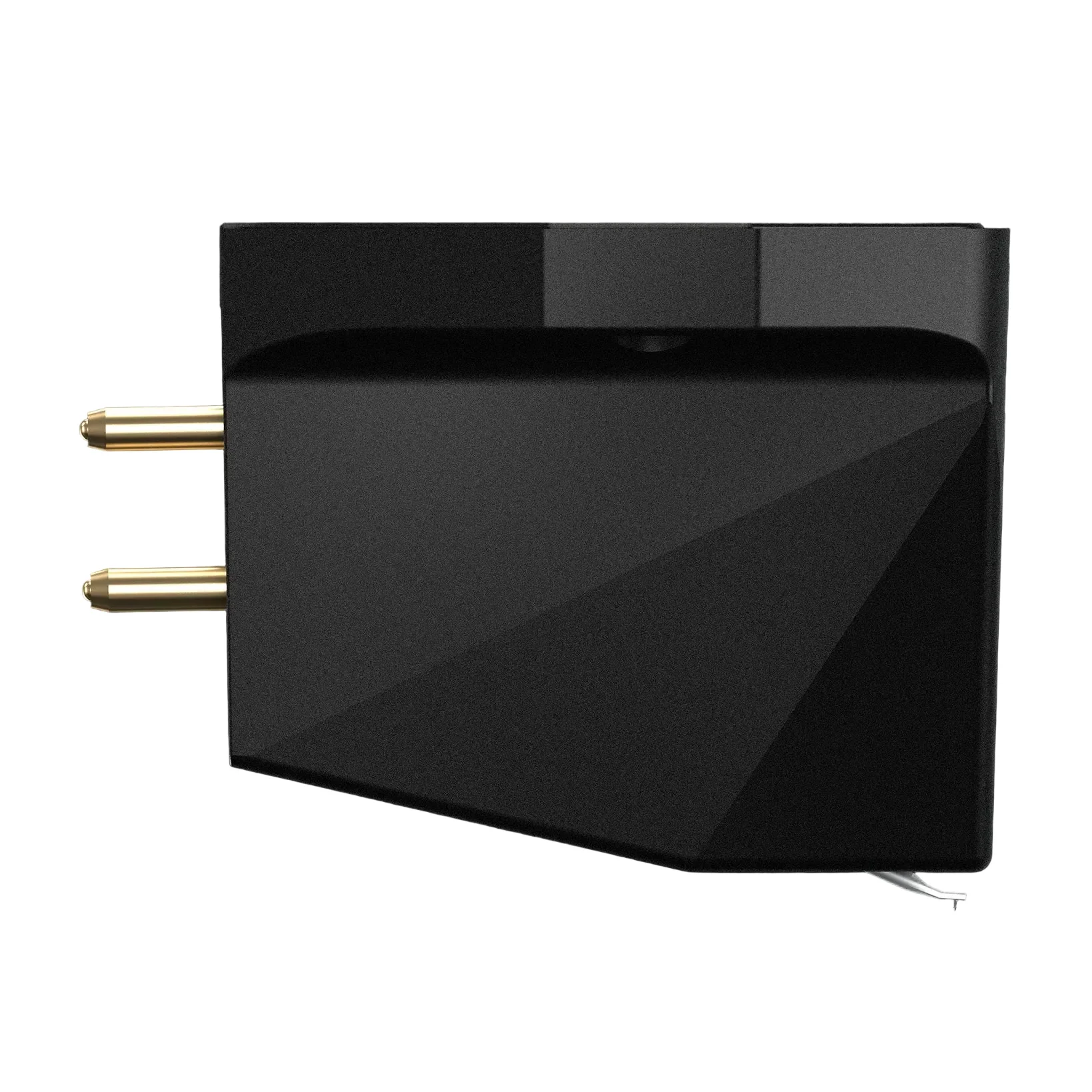

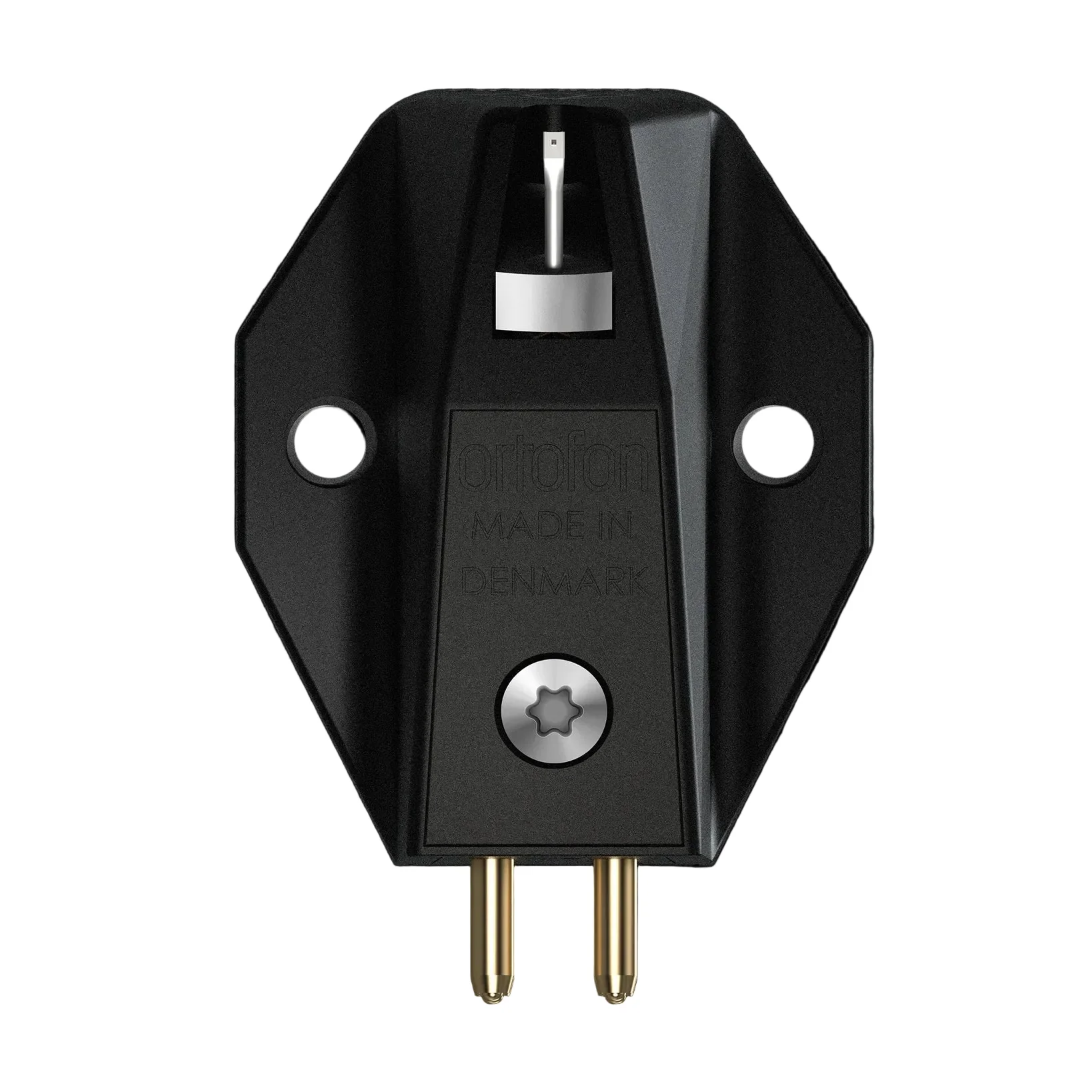

Ortofon: MC X30 Moving Coil Cartridge

📌 LAB POINTS

• third-tier moving coil (MC) cartridge in Ortofon's new MC X series
• nude fine line diamond stylus w/ high-purity silver quad coils
• newly developed MC X magnet system ensures a clean, powerful signal path
• custom-developed rubber dampers offer super accurate tracking & reduced distortion

• advanced honeycomb-structured stainless steel frame, created using Metal Injection Molding (MIM) technology
• low internal impedance for compatibility with a wide range of preamps and transformers

"Push your listening experience further with the MC X30. Featuring a nude fine line diamond stylus, it offers extraordinary accuracy and resolution, rendering your music and every track with breathtaking detail and dynamic range." - Ortofon

🔑 KEY FEATURES

• cartridge type: moving coil for hi-fi listening
• stylus type: nude fine-line diamond

• cantilever material: Aluminum
• stylus tip radius: r/R 8/40 μm
• compliance: 15 μm/mN
• output voltage: 0.4 mV
• frequency response: 20 Hz - 20 kHz  +/-1 dB
• channel separation at 1 kHz: 26 dB
• internal impedance: 6 Ω
• recommended load resistance: >50 Ω
• tracking force: 2 g
• cartridge weight: 8.6 g
• replaceable stylus: no
• upgradeable stylus: no

📦 COMES WITH

• mounting screws
