Music Hall: Mini Plus Phono Preamp (MMINIPLUS)

📌LAB POINTS

• high quality phono preamp for MM (Moving Magnet) or high output MC (Moving Coil) cartridges

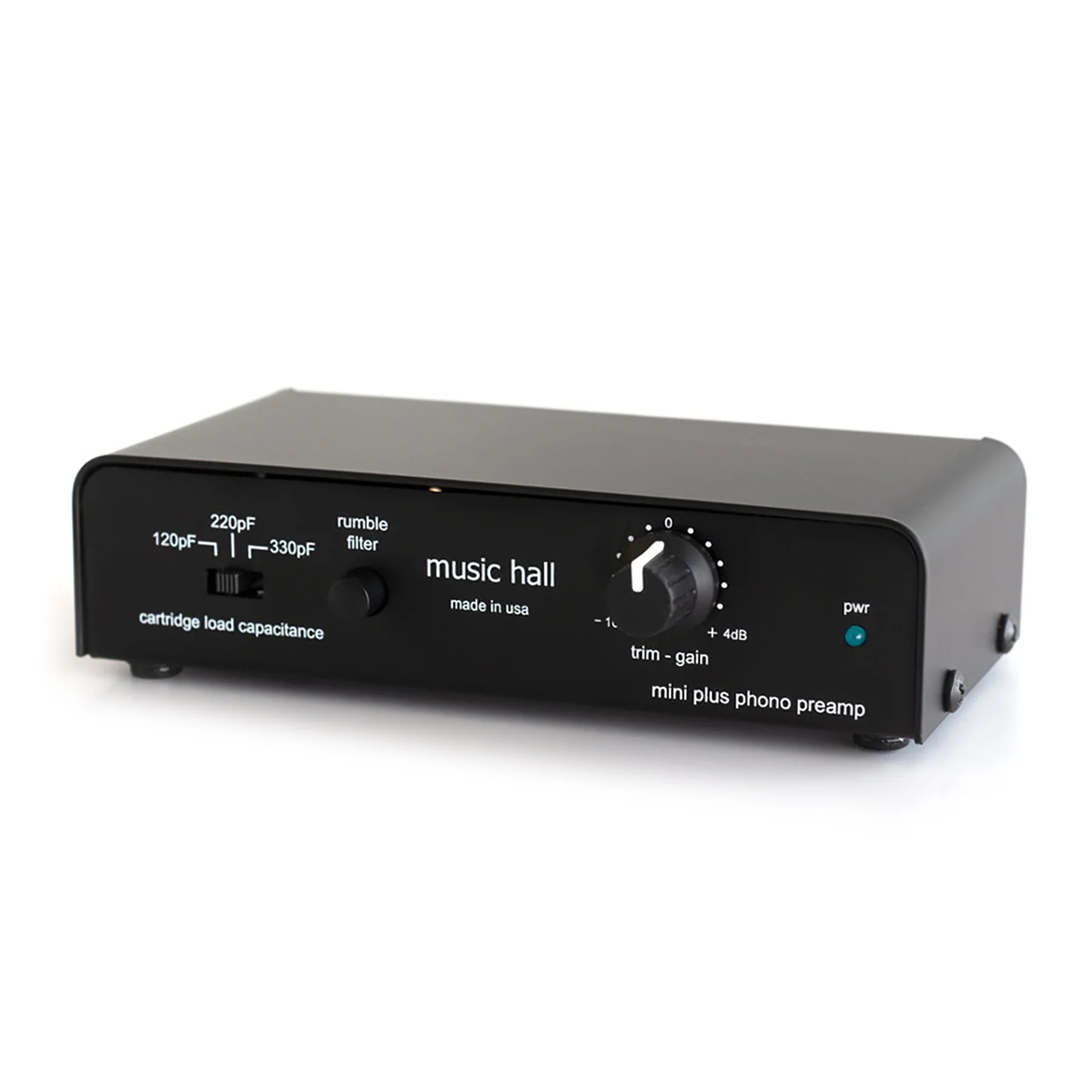

• selectable cartridge load capacitance allows subtle sound optimization for your MM cartridge
• ultra quiet operation
• rotary trim/gain control on front side + rumble filter for cutting very low frequencies (below 20 Hz)
• high grade headphone amp w/ independent rear headphone/line output (3.5mm)

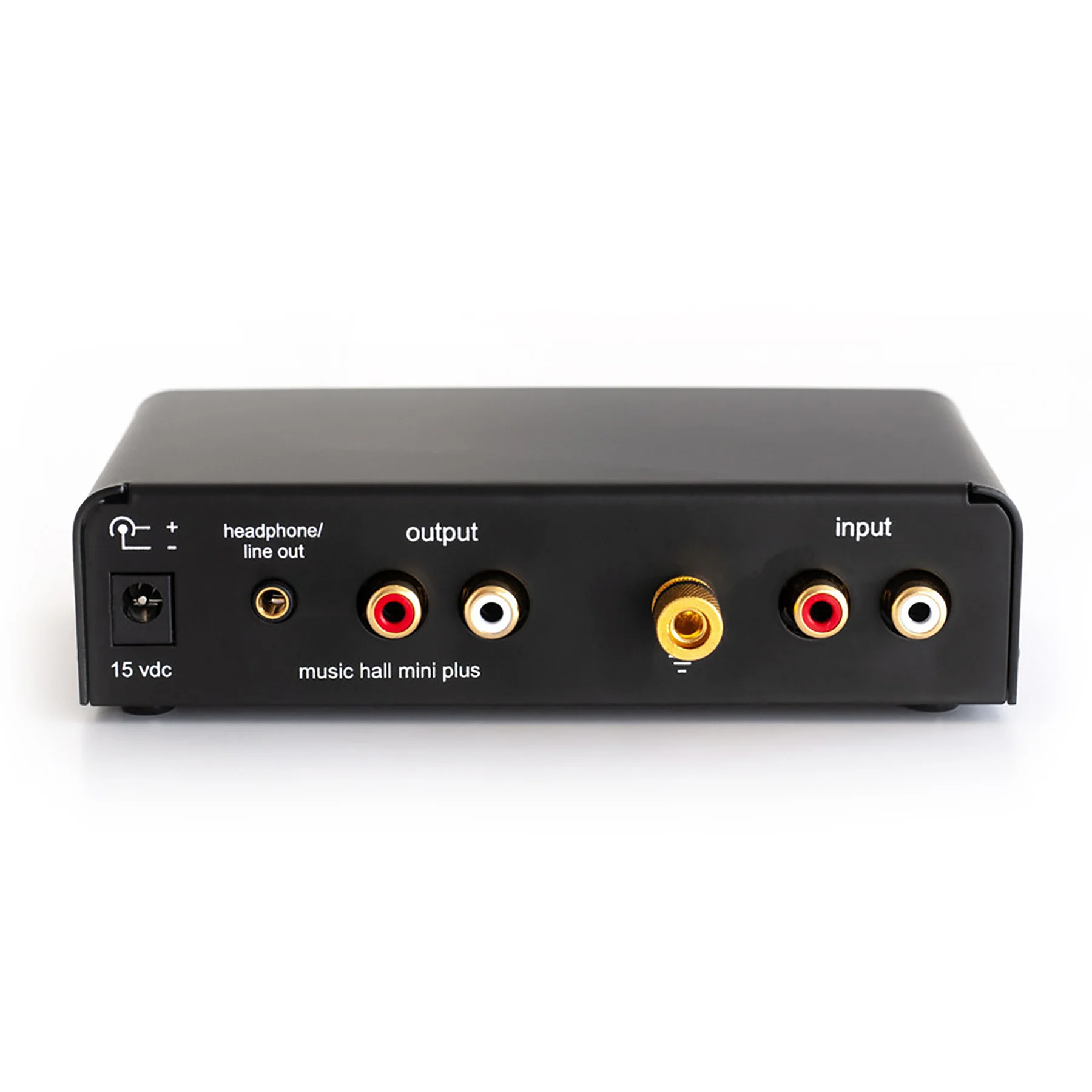

• gold-plated RCA inputs and outputs, and grounding connection
• metal casing w/ vibration damping feet
• made in the USA

"The music hall mini plus phono pre-amp is a perfect solution for attaching a turntable to today's audio equipment. It's a low-noise, high quality phono pre-amp designed to work with moving-magnet and high-output moving-coil cartridges. The chassis helps ward off the effects of stray magnetic fields and provides a safe quiet environment for the sensitive electronics it houses thus providing you with the best sound possible from your turntable." - Music Hall

🔑KEY FEATURES

• input: RCA + 1/8" TRS stereo
• gain: 41.51 dB gain @ 1kHz at 0 setting / 31.64 dB gain @ -10 setting / 45.66 dB gain @ +4 setting
• input Impedance: 47k
• output impedance: 32 ohms headphone / 470 ohms RCA
• frequency response: 3Hz to 36kHz
• THD: .005% @ 1KHz
• dimensions: 5.5"w x 3.5"d x 1.25"h / 140 x 89 x 32mm
• weight: 2 lbs / 0.9g

📦COMES WITH

• power supply
