Cambridge Audio: Duo MC/MM Phono Preamp

📌LAB POINTS

• audiophile-quality phono stage + headphone amp
• compatible with MM (Moving Magnet) and MC (Moving Coil) cartridges
• state of the art switch mode power supply for fast response, high precision, reduced hum + compact design

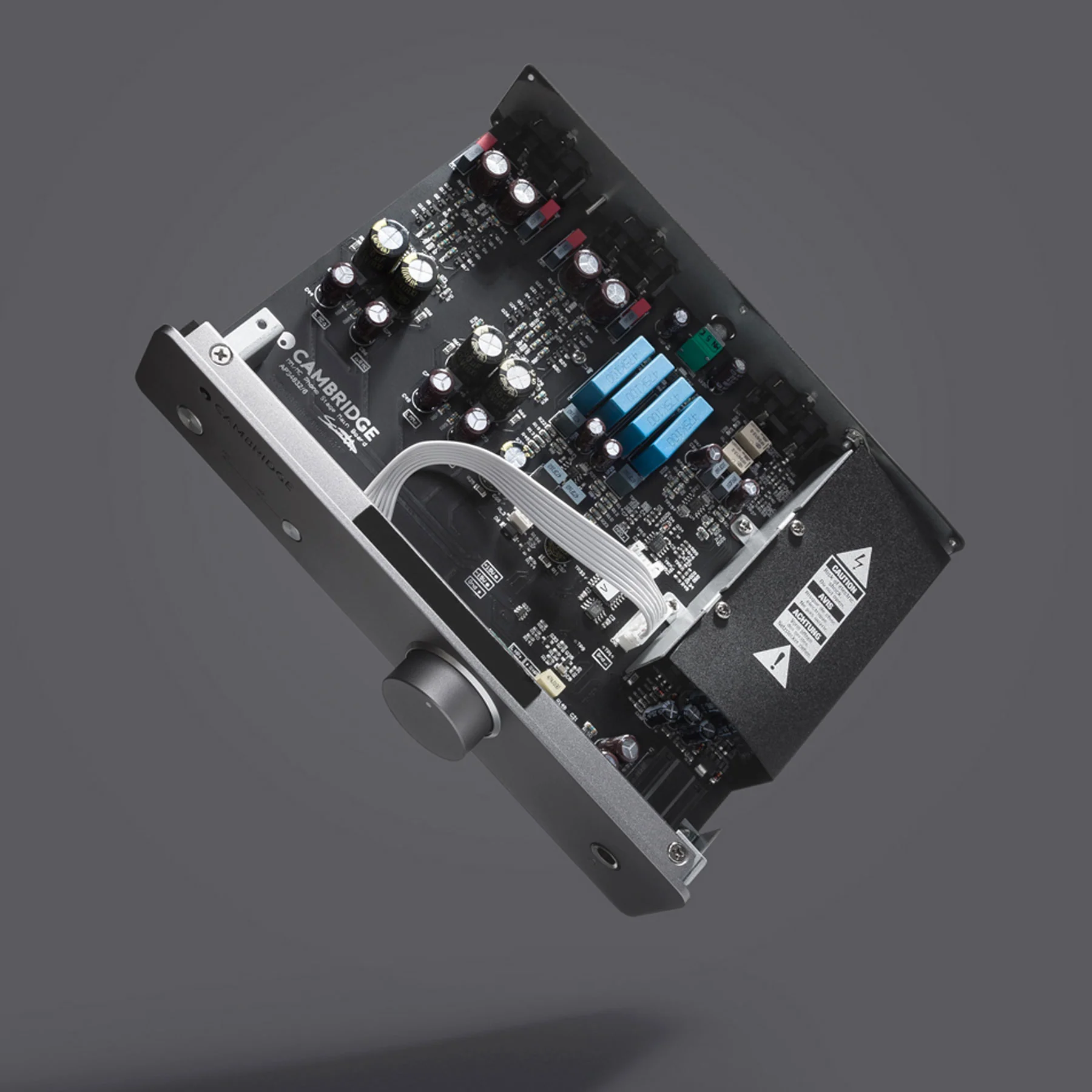

• surface-mounted internal circuitry guarantees low background noise

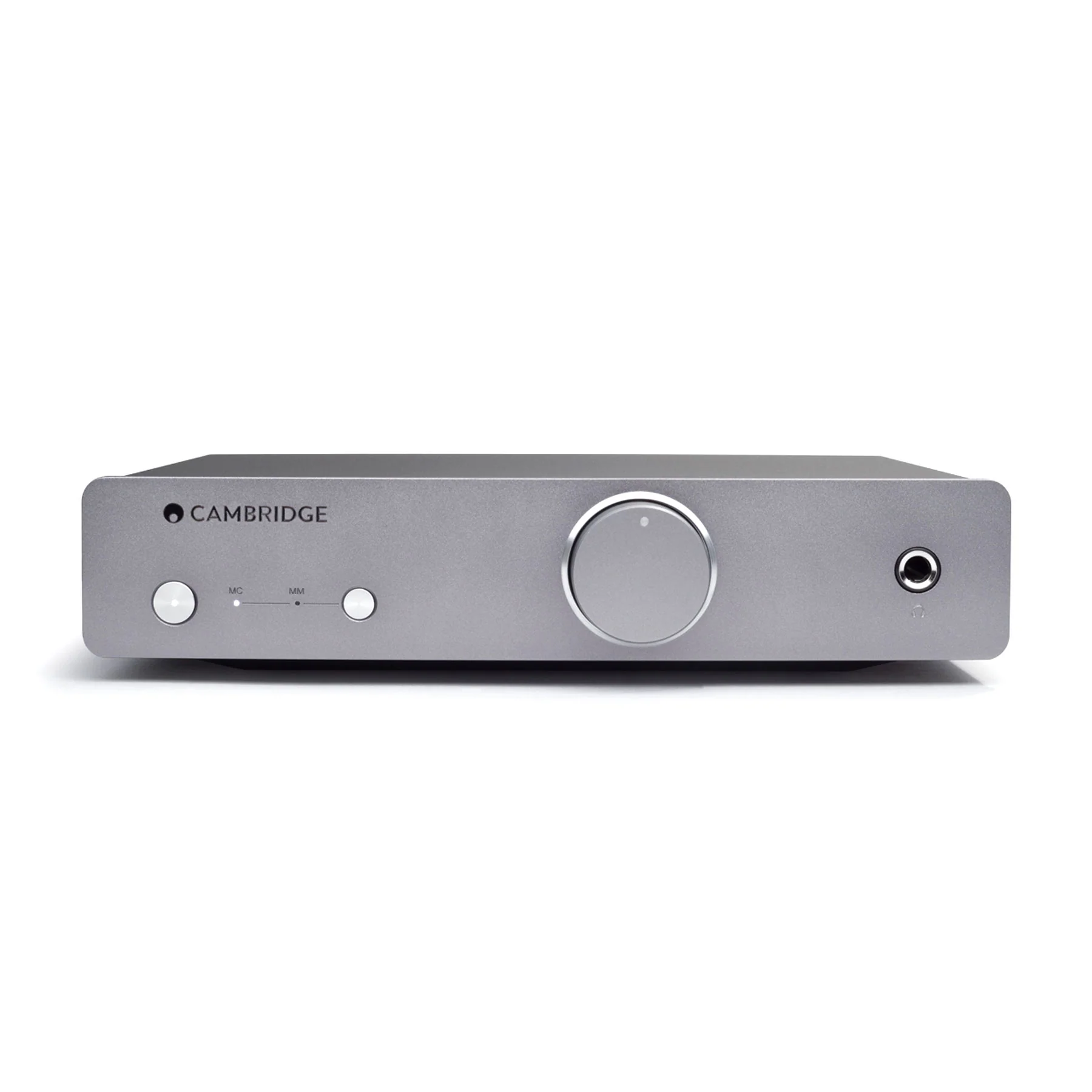

• 1/4" headphone jack on front panel
• onboard volume (front) + balance (rear) rotary controls

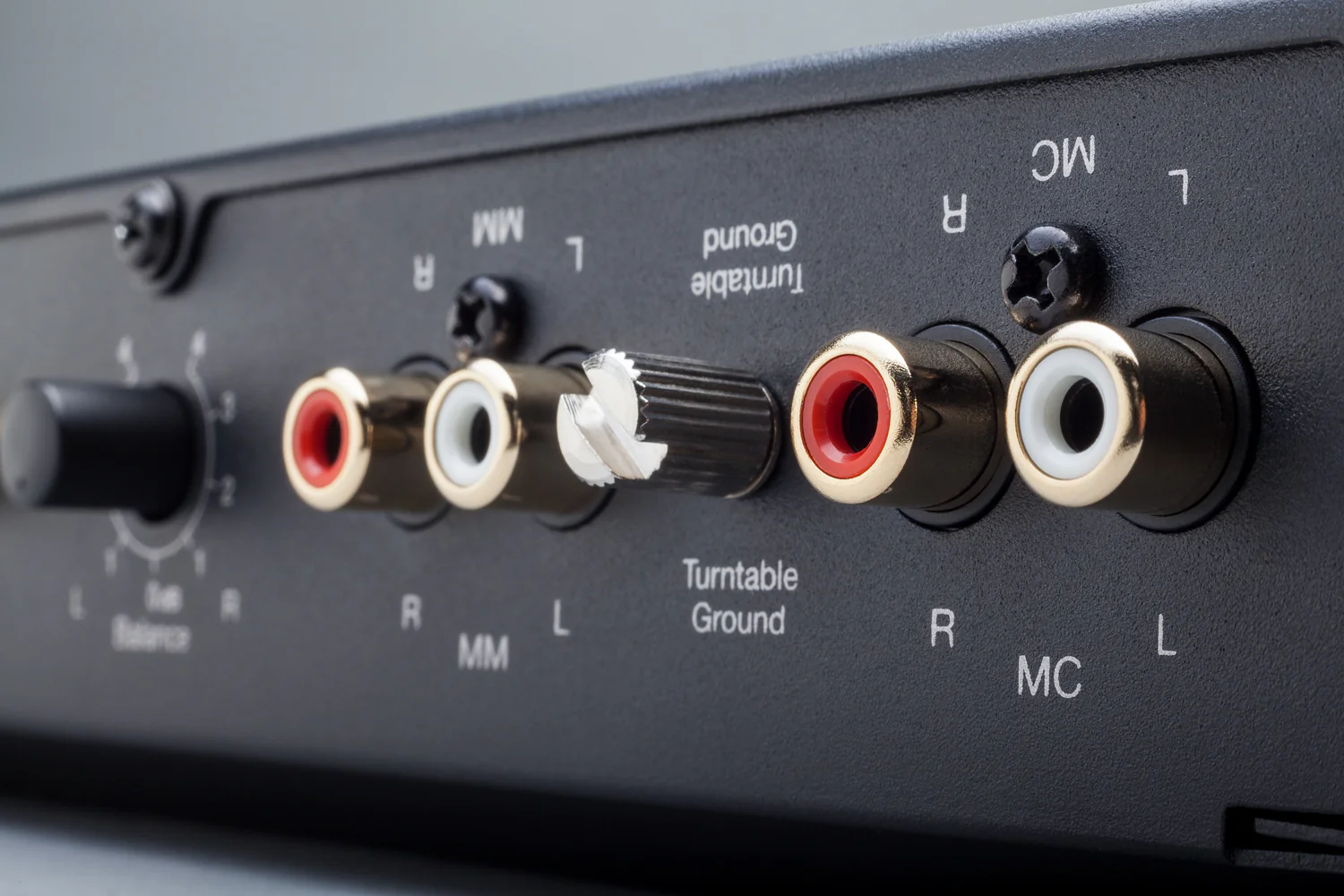

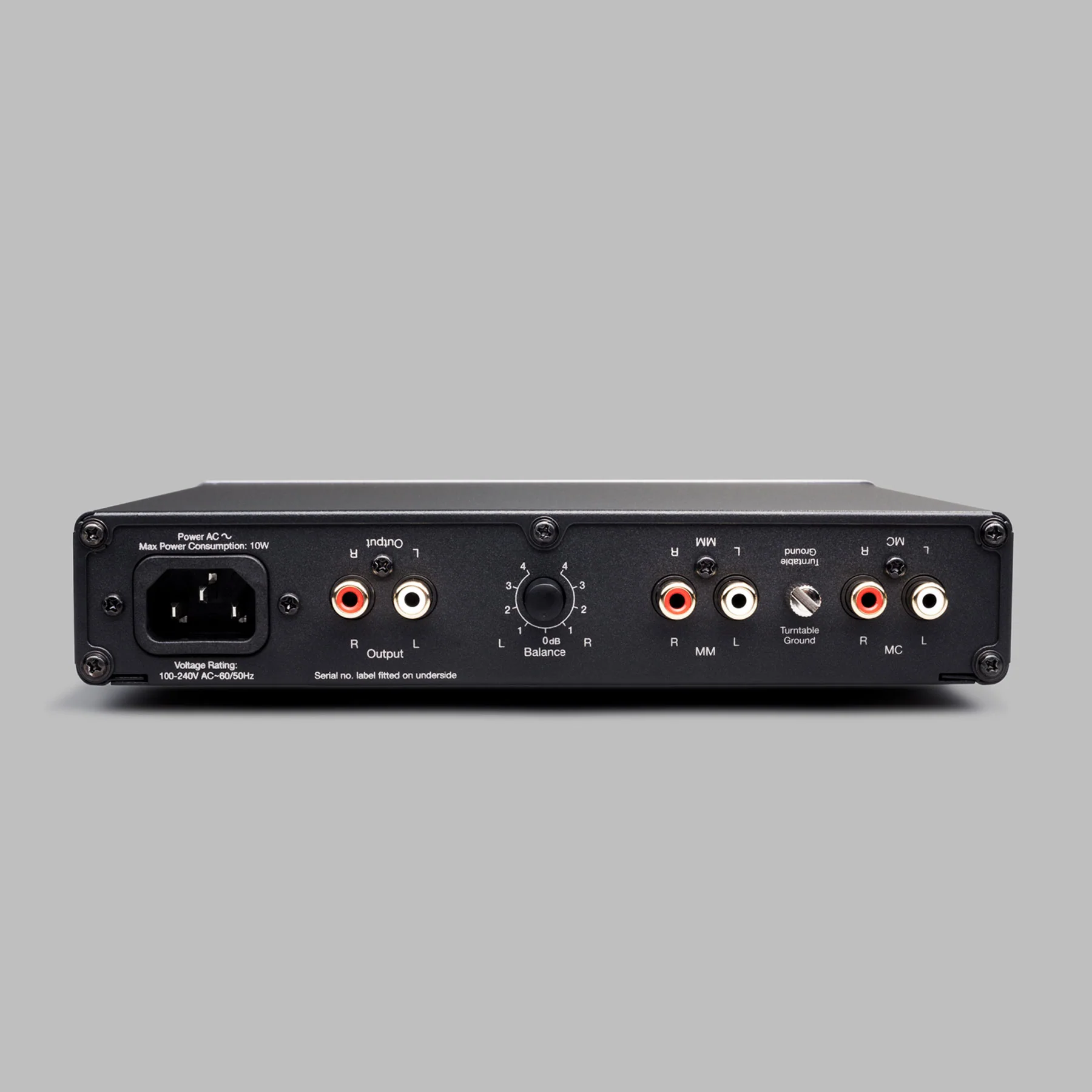

• dual RCA inputs for MM + MC w/ grounding post
• premium aluminum + steel construction

"With the new Solo and Duo phono stages, Cambridge Audio has incorporated the latest technology to ensure that the traditional, enjoyable ‘warm’ sound of vinyl is maintained, but is presented with a modern precision that has previously been unavailable. The Solo and Duo both use the latest switch mode power supplies and surface mount technology to allow a compact overall design with short signal paths on the board inside. This guarantees a faster response, greater precision and, importantly, lower background noise levels - free from the hum and noise that can badly corrupt the delicate low-level signals of vinyl." - Cambridge Audio

🔑KEY FEATURES

• max power consumption: 10W

• gain @ 1kHz: 39dB / 60dB
• nominal output: 300mV / 300mV
• output sensitivity: 3.35mV / 3.05uV
• signal to noise ratio: >90dB / >70dB
• THD: < .0025% (MM) / < .020% (MC)
• load impedance: 47k Ohms (MM) / 100 Ohms (MC)
• input capacitance: 100pF
• dimensions: 1.89" x 8.46"  x 6.26" /  48 x 215 x 159mm
• weight: 2.1 lbs / 0.95kg

📦COMES WITH

• user manual

• safety guide
• mains lead
