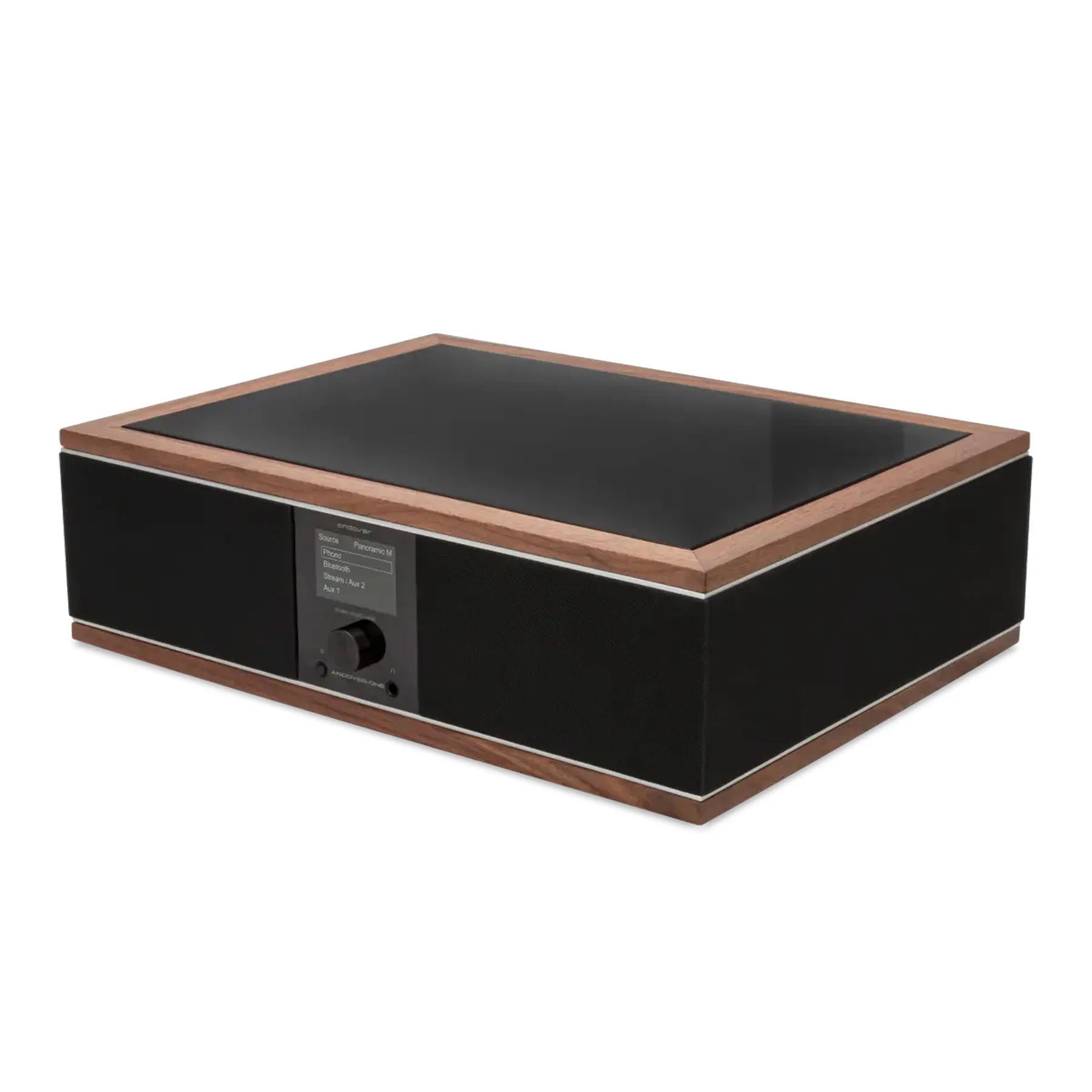

Andover Audio: Andover-One SB Turntable Speaker Base

📌 LAB POINTS

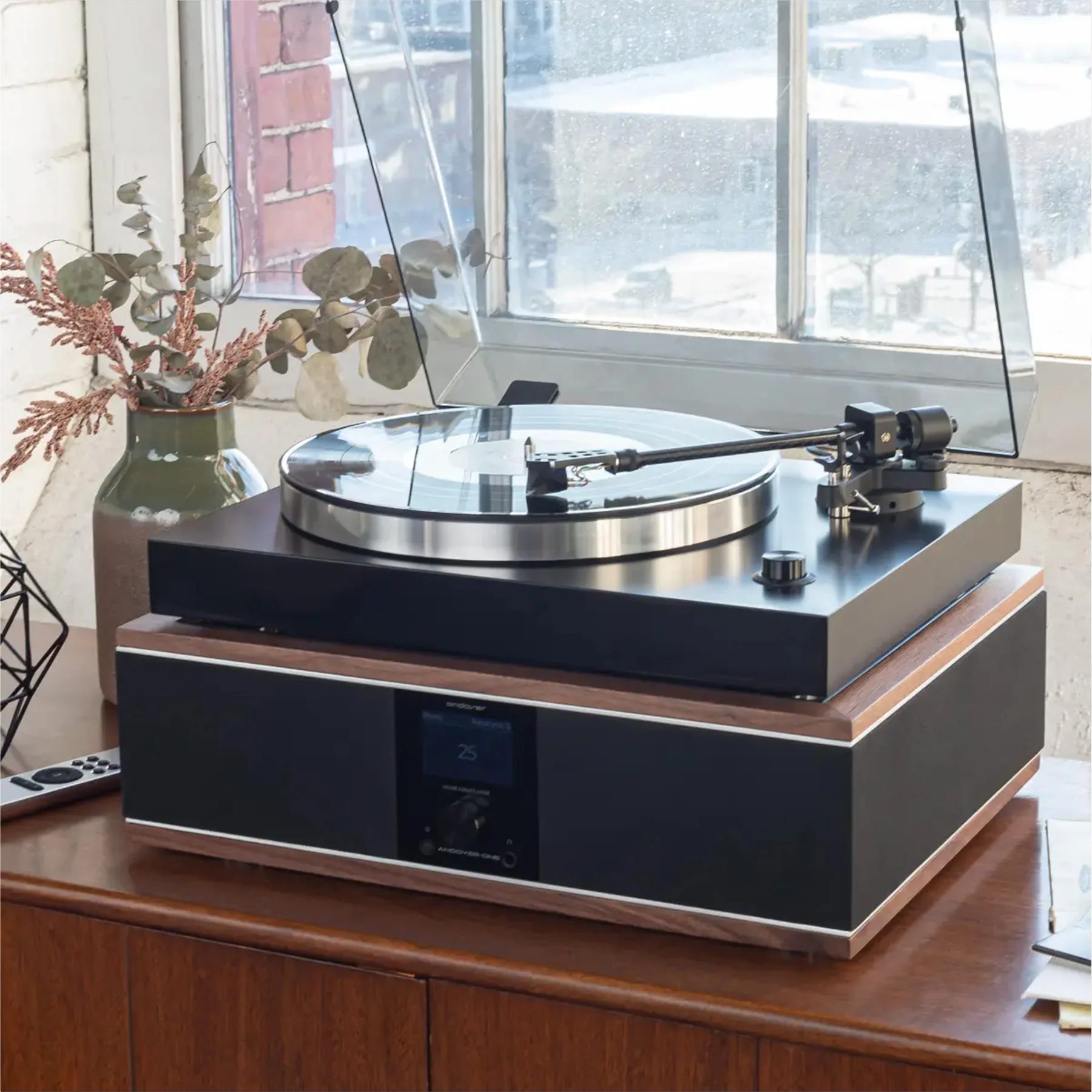

• space-saving, audiophile speaker base designed for turntable platform usage; includes Bluetooth aptX HD connectivity

• recommended for medium sized rooms
• bi-amplified 200W power output driving a 6-speaker system
• IsoGroove® Technology eliminates vibration + feedback issues

• 270º panoramic sound dispersion

• built-in MM phono preamp, can be switched off for use w/ turntables that have internal preamps
• EQ adjustments + multiple listening modes available via remote or front-panel control
• 1/4" headphone jack w/ Class-A amplifier on the front
• full array of analog + digital inputs
• tempered glass-top as the turntable platform

• furniture-grade hardwood frame encases an MDF chassis for stable playback

ANDOVER-ONE SB vs. SPINBASE MAX 2

• Andover-One SB offers 200W power vs. Spinbase Max 2's 100W
• Andover-One SB uses Air Motion Transformer (AMT) tweeters vs. Spinbase Max 2's silk dome tweeters
• Andover-One SB includes USB output for vinyl recording + computer playback
• Andover-One SB is larger and heavier with its hand-crafted wood + driver configuration

"IsoGroove is an innovative technology that eliminates the age-old issue of turntables creating a feed back loop with speakers. The technology allows Spinbase to be placed directly underneath your turntable, serving as both an elegant platform and wide-range loudspeaker system." - Andover Audio

ISOGROOVE TECHNOLOGY EXPLAINED

• IsoGroove uses (3) main technologies in combination. It was developed by a team that developed components for Cambridge SoundWorks, A/D/S and JBL.
• The first and most significant is the speakers are arrayed such that the basic mechanical vibrations cancel each other.
• The surface was analyzed for vibration patterns. Strategically placed bracing minimize the vibrations even further.
• Lastly, a DSP (digital signal processor) is utilized at low frequencies to ensure that low frequencies are always balanced to provide maximum vibration cancellation regardless of musical content.

🔑 KEY FEATURES

• speaker type: active speaker for everyday listening
• peak power output: 200W
• amplifier class: Class A
• frequency response: 50 Hz - 20 kHz
• high frequency driver: 3/4" AMT ribbon
• low frequency driver: 3.5" aluminum cone
• EQ: 3-band (high + mid + low)

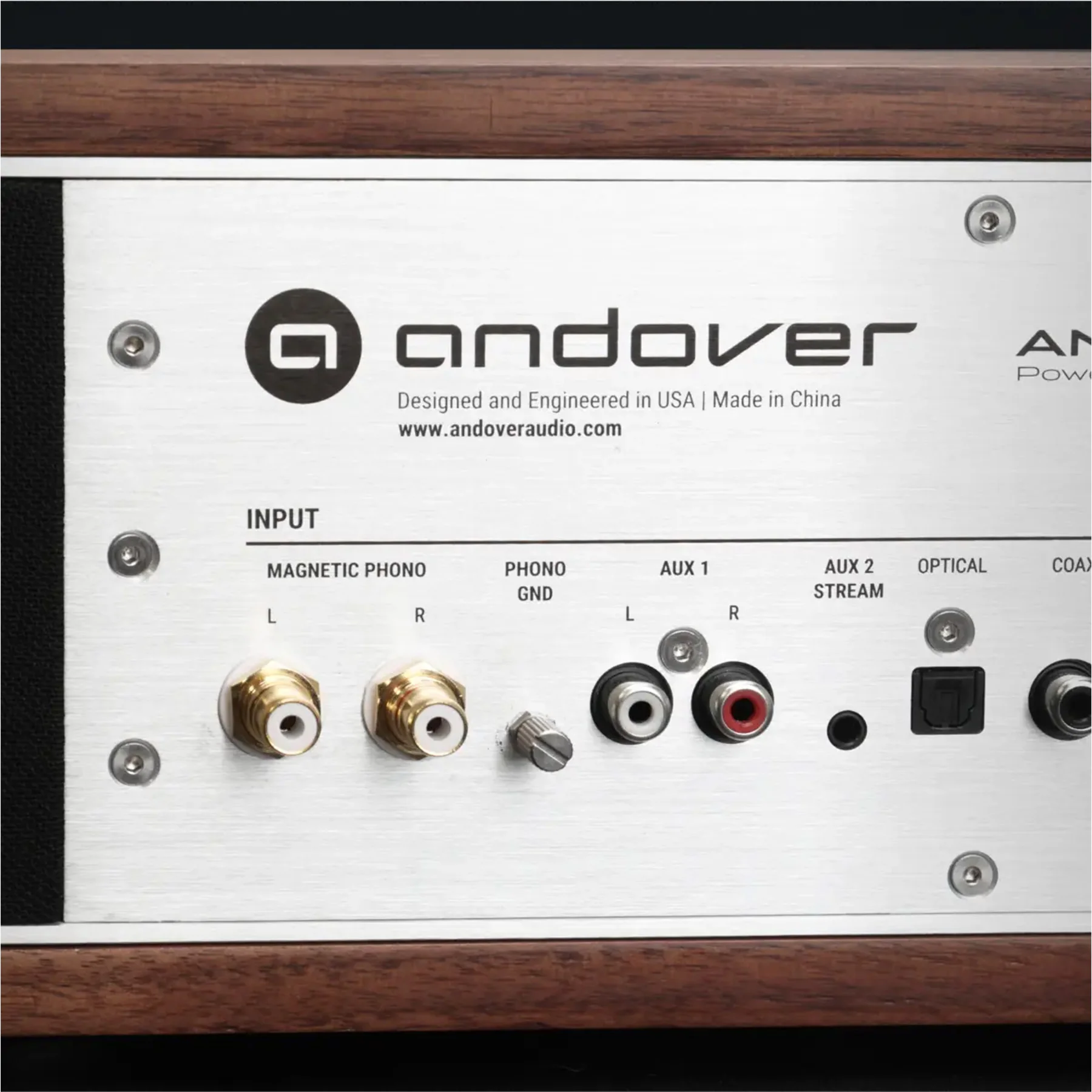

• wired inputs: RCA line, RCA phono + ground, 3.5mm line, Optical (TOSLINK), Coaxial, USB Type-A
• wireless inputs: Bluetooth aptX, Bluetooth aptX HD
• outputs: RCA line, USB Type-A
• phono preamp: yes
• headphone output: yes, 1/4"
• subwoofer out: yes, 3.5mm
• dimensions: 18.0" (w) x 5.5" (h) x 13.5" (d) / 457 x 139 x 343mm

📦 COMES WITH

• remote control
• RCA cable w/ ground wire
